Direk Endüstriyel Dikiş Makinası GC18360 Serisi

GC18360-L   1-needle, 360 degree, left post bed
                      lockstitch sewing machine
GC18360-R   1-needle, 360 degree, right post bed
                      lockstitch sewing machine

  • GC18360-Sol/Sağ

  • KINGMAX

  • tek iğne

  • Yürüyen ayaklı karma yem

  • 800

Kullanılabilirlik Durumu:
Sor

Product Descriptions

Post Bed Industrial Sewing Machine GC18360 Series Descriptions

These two machines are single needle, 360 degree rotation, post bed, compound feed with walking foot, industrial sewing machine. Both of these two machines have the large rotary hook and large bobbin, the arc bed is joined with the post-bed based on the center of axis for 360 degree direction, which can be moved manually free for the special corner sewing, powerful and effective compound feed with the walking foot for the constant stitch and trouble-free material feed, large working space under the arm for the large workpieces, high needle bar stroke and high foot lift, safety clutch and automatic lubrication system, both the left and right post bed as the option. Suitable for sewing medium to heavy weight materials, such products as bags, suitcases, wallets and other leather products etc.

Features

Post Bed Industrial Sewing Machine GC18360 Series Features

  • 360 degree rotation, post-bed, industrial sewing machines.

  • Free movement manually for the different unique shape products.

  • The safety clutch device prevents the hook damage.

  • Both the left and right post bed as the option.

  • Very good post-bed machines for the bag manufacturers.

Specifications

Direk Endüstriyel Dikiş Makinesi GC18360 Serisi  Özellikler

modeli

GC18360-L

GC18360-R

İğne Sayısı

1 iğne

Maks.Dikiş Hızı

800SPM

Direk Yatağının Çapı

54mm

Yatak Yüksekliği

443mm

Eğimli Direk Yatağının İç Yüksekliği

268mm

Eğimli Direk Yatağının İç Uzunluğu

180mm

Maks.Dikiş Uzunluğu

8 mm

Baskı Ayağının Maks.Kaldırılması

16mm

İğne

DPX17, 19-23#


Product Details

Post Bed Industrial Sewing Machine GC18360 Series Details

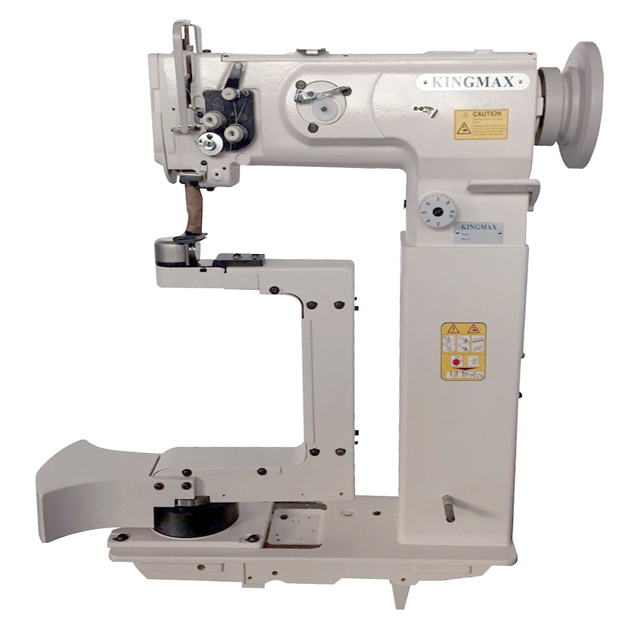

single needle post bed industrial sewing machine - KINGMAX
